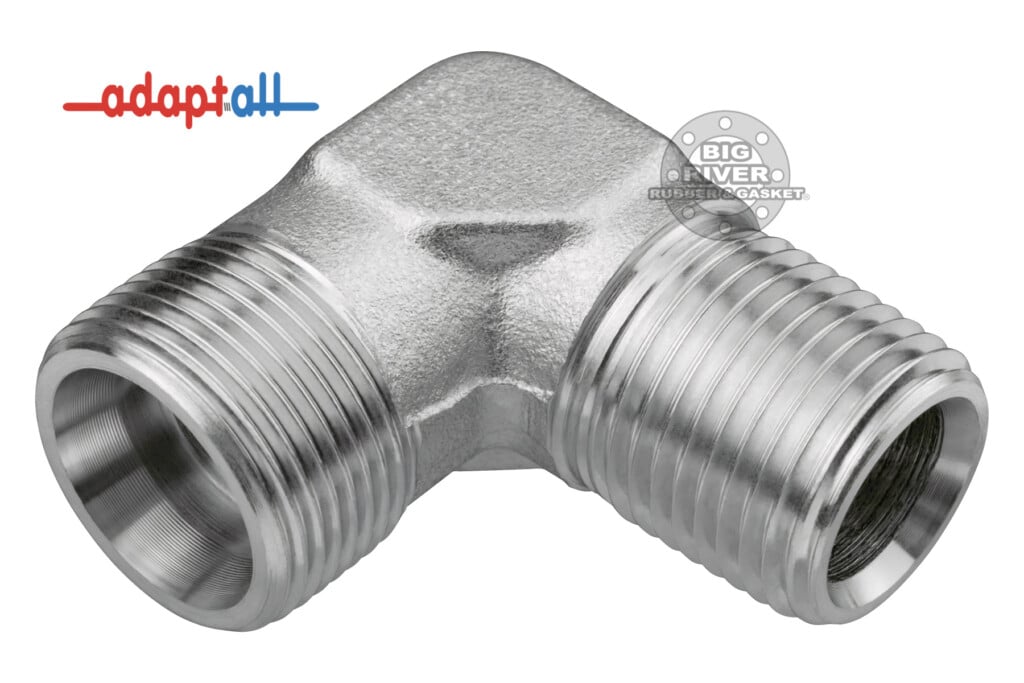

Adaptall 5070 Series Metric Adapter 5070S-16-08
- End Types: DIN X Male NPT
- Material: Steel / Carbon Steel
- Shape: 90° Elbow
Light Duty
Part Number | 5070S-16-08 | |
CH Hex Size | 24 | mm |
F1 (Metric) | 24X1.5 | |
Pressure Size / Tube Rating | Heavy Duty | |
F2 (NPT) | 1/2-14 | |
L1 | 34.0 | mm |
L2 | 25.0 | mm |
L3 | 37.0 | mm |
B Bore (Minimum) | 12.0 | mm |
Tube Size | S16 | |
Material Spec | Steel | |
Plating | ASTM B633-Fe/Zn 8-12 | |
Relevant Standards | ISO 8434-1 / DIN 2353, ANSI B1.20.3 |
