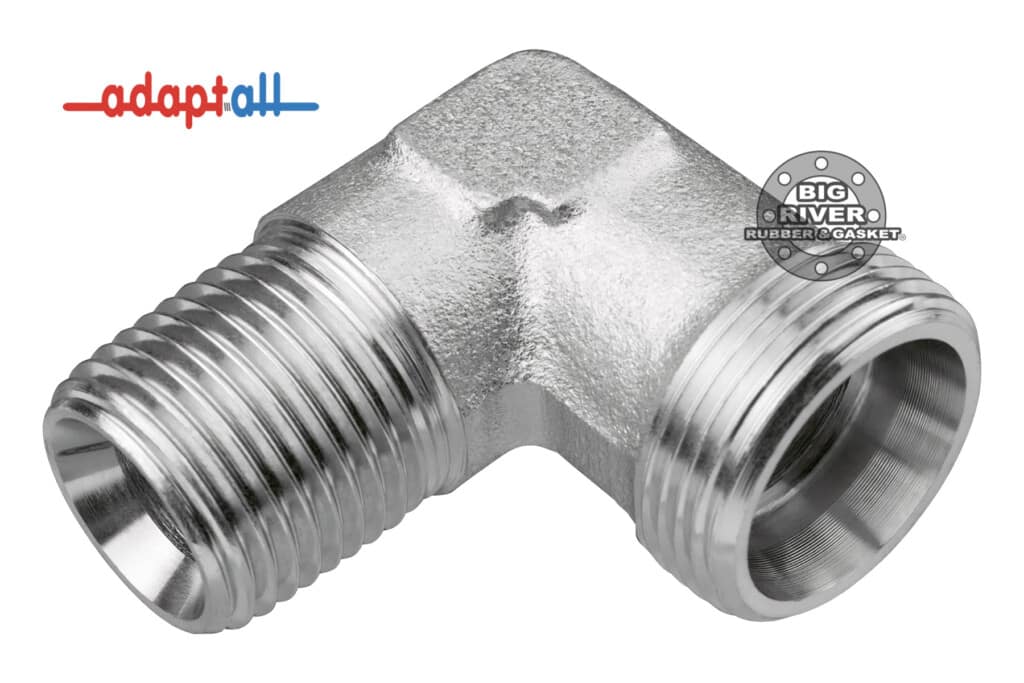

Adaptall 5063 Series Metric Adapter 5063L-18-08
- End Types: DIN X Male BSPT
- Material: Steel / Carbon Steel
- Shape: 90° Elbow
Light Duty
Part Number | 5063L-18-08 | |
CH Hex Size | 24 | mm |
F1 (Metric) | 26X1.5 | |
Size / Tube Rating | Light Duty | |
F2 (BSPT) | 1/2-14 | |
L1 | 31.0 | mm |
L2 | 23.5 | mm |
L3 | 36.0 | mm |
B Bore (Minimum) | 12.0 | mm |
Tube Size | L18 | |
Material Spec | Steel | |
Plating | ASTM B633-Fe/Zn 8-12 | |
Relevant Standards | ISO 8434-1 / DIN 2353, ISO 7-1 / DIN EN 10226-1 |
