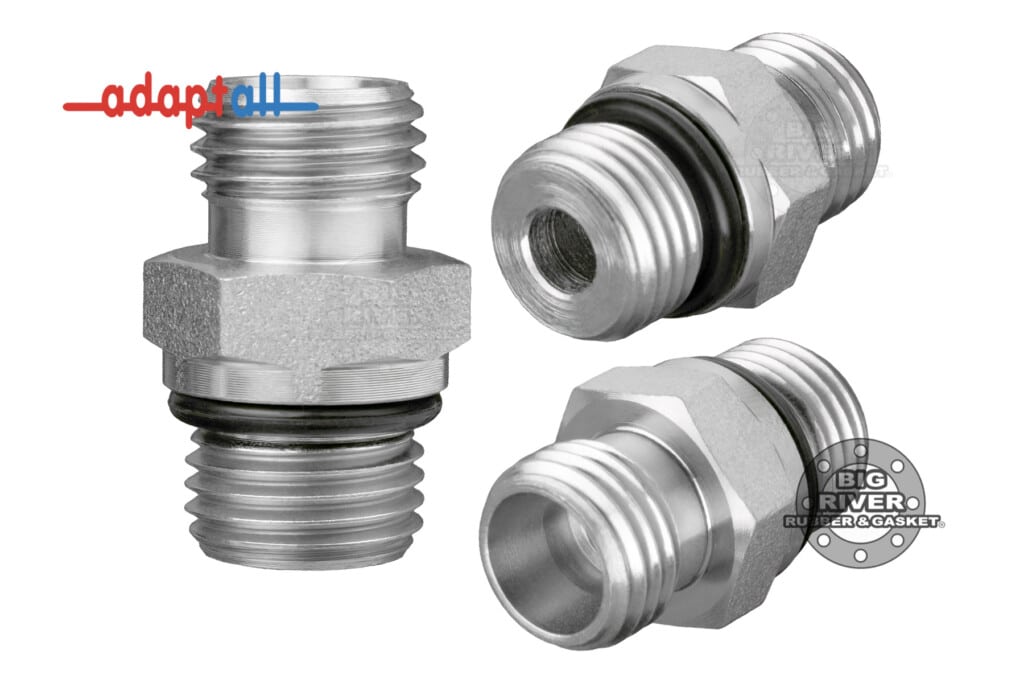

Adaptall 5006 Series Metric Adapter 5006L-08-06
- End Types: DIN Union X Male SAE ORB
- Material: Steel / Carbon Steel
- Shape: Straight
Light Duty
Part Number | 5006L-08-06 | |
CH Hex Size | 19 | mm |
F1 (Metric) | 14X1.5 | |
Size / Tube Rating | Light Duty | |
F2 (SAE ORB) | 9/16-18 | |
L1 | 27.0 | mm |
L2 | 10.0 | mm |
L3 | 10.0 | mm |
B Bore (Minimum) | 6.0 | mm |
Tube Size | L08 | |
Material Spec | Steel | |
Plating | ASTM B633-Fe/Zn 8-12 | |
Relevant Standards | ISO 8434-1 / DIN 2353, SAE J1926 / ISO 11926 |
